Ethos 4.2 Metre 130mm Zero Clearance Flue Kit ONLY
The Ethos 4.2 Metre 130mm Zero Clearance Flue Kit is a complete, NZ-compliant flue system designed specifically for installing Ethos Ares inbuilt wood fires into timber-frame cavities without masonry.
This kit includes the full EconAir bi-directional induction flue system, tested and compliant with AS/NZS 2918:2001 (Test Report ARS 14/2684) .

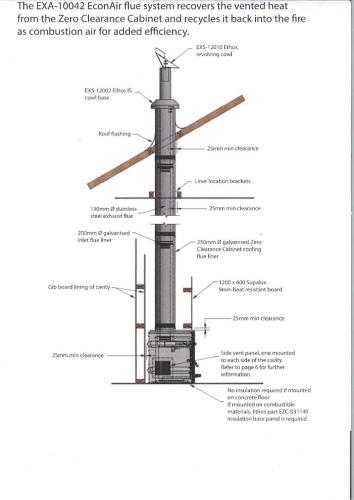

The zero clearance configuration allows safe installation into combustible walls, using a 250mm ventilated cooling liner, dedicated air cavity design, and rear + side ventilation plates.
Fire, Zero Clearance Cabinet and Base Panel are not Included.
Key Features
Full 4.2m 130mm EconAir flue system for Ethos inbuilt installations
Designed for Zero Clearance Cabinet (EZC-031135) installations
For timber-frame cavities —with Ethos Zero Clearance Cabinet
250mm cooling liner provides compliant clearance to combustibles
Side and rear ventilation plates ensure correct airflow (Page 6)
Tested to AS/NZS 2918:2001
Suitable for the Ares IS100 inbuilt wood fire
EconAir induction system draws all combustion air from outside, not the room
Higher efficiency, lower emissions, and no cold draughts
Specifications
Type: Zero Clearance Inbuilt Flue System
Total Height: 4.2 metres
Inner Flue Diameter: 130 mm (Ethos-specific)
Installation Type: Timber-frame cavity or new wall construction
Compliance: Tested to AS/NZS 2918:2001 (Page 1)
Ethos+Insert+Zero+Clearance+Ins…
Included Components
(From Page 2 parts list)
Ethos+Insert+Zero+Clearance+Ins…
3 × 130mm × 1200mm stainless flue
1 × 130mm × 600mm stainless flue
2 × 200mm × 1200mm galv inlet liners
1 × 200mm × 600mm galv inlet liner
1 × 200mm × 1200mm galv liner with Z brackets
1 × 250mm × 600mm galv cooling liner
3 × 250mm × 1200mm galv cooling liners
Mounting rails (600mm)
130mm spider bracket
Ethos revolving cowl EXS-12010
Ethos IS cowl base EXS-12002
Additional requirements:
Zero Clearance Cabinet (EZC-031135)
Insulation base panel if installed on combustible floor
