4.2 Metre Inbuilt Zero Clearance Flue Kit
Overview

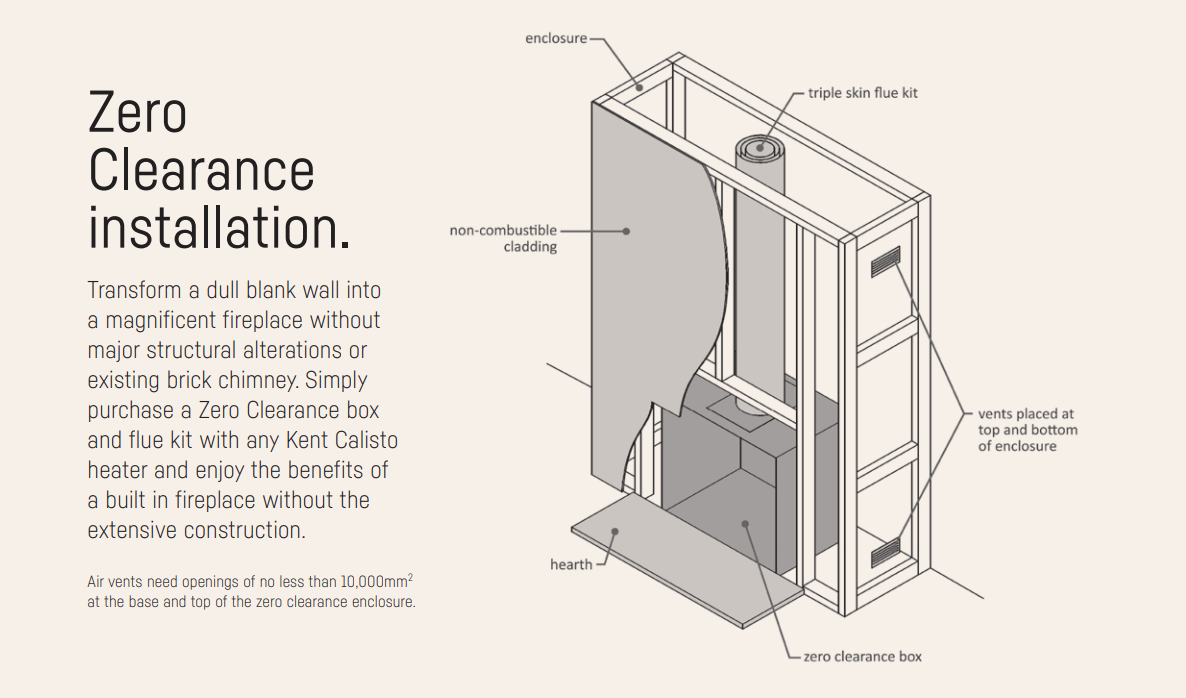

The 4.2 Metre Inbuilt Zero Clearance Flue Kit is a complete, fully compliant flue system designed for installing inbuilt wood burners into timber-framed cavities where no masonry chimney exists. This kit provides the protected vented flue structure required to maintain safe clearances to combustibles, making it ideal for new builds and renovations.
Engineered for NZ conditions and building standards, the 4.2m kit includes everything needed for a full cavity installation: inner and outer flue sections, zero-clearance shielding, a vented outer casing, ceiling components, roof flashing, and a cowl. This ensures correct draft, fire safety, and long-term durability.
Key Features
Complete 4.2m zero clearance flue system for inbuilt wood fires
Suitable for timber-frame cavity installations (no masonry required)
Provides compliant vented and insulated flue structure
Ensures safe clearances to combustibles
Compatible with most NZ inbuilt wood burners

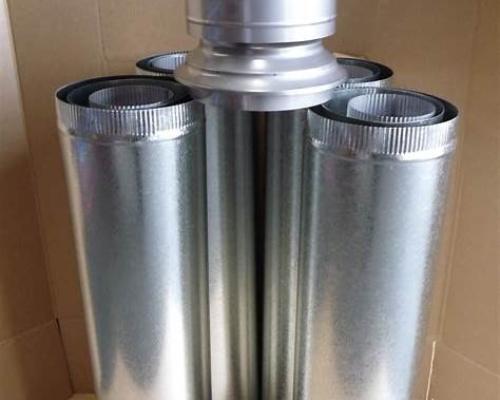

3 x 150mm x 1200mm Stainless Steel Flue
3 x 200mm x 1200mm Glavanised Flue
3 x 250mm x 1200mm Galvanised Flue
1 x 253mm 600mm x 1200 Glavanised Slip
1 x 250/150 Casing Cover
1 x 150mm Anti Down Draught Cowl
1 x Top Spacer Bracket
Internal Spacers
Meets New Zealand wood burner installation standards
Specifications
Type: Zero Clearance Multi-Part Flue Kit
Total Length: 4.2 metres
Application: Inbuilt / insert wood burners in timber-frame walls
Flue Diameter: 150 mm (inner) – standard for most wood burners
Finish: Stainless / Black (varies by supplier)
Includes:
Stainless steel inner flue
Outer flue casing (vented / insulated)
Zero-clearance shielding components
Cavity brackets and spacers
Ceiling ring and ventilated ceiling plate
Roof flashing suitable for pitch
Top cowl / terminal
Fixings and hardware
Compatibility: Most 150mm inbuilt wood burners (Firenzo, Yunca, Metro, Masport, Woodsman, etc.)
Installation: Must be installed by a certified wood burner installer for NZ compliance
