4.0 Metre Insert Flue Kit with Galvanised Chimney Plate

Overview

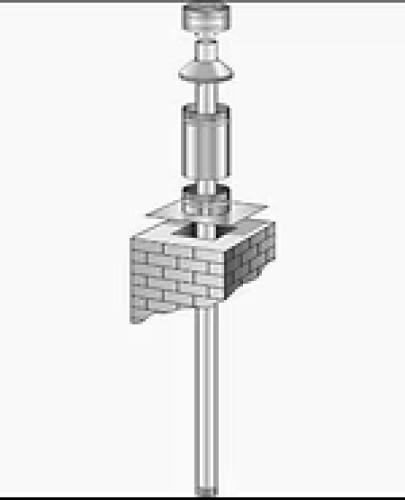

The 4.0 Metre Insert Flue Kit with Galvanised Chimney Plate is a complete flue system designed specifically for installing inbuilt or insert wood burners into existing masonry chimneys. This kit provides a full stainless flue run from the appliance to the top of the chimney, ensuring safe draft, reduced creosote build-up, and full compliance with NZ wood burner installation standards.

The included galvanised chimney plate seals the top of the existing fireplace structure, stabilises the flue, and protects the system from weather entry. Ideal for retrofit installations where homeowners are upgrading from an open fire to an efficient modern insert wood burner.

Key Features

• Complete 4.0m flue kit for insert wood burners

• Designed for masonry chimney New Installaitons & Retrofit installations

• Includes galvanised chimney plate for sealing & stabilising the flue

• Ensures safe and efficient upward draft

• Stainless steel inner flue for durability and high heat resistance

• Suitable for most 150mm insert wood burners

• Complies with NZ wood burner installation standards

• Ideal for replacing open fires with modern inserts

Specifications

Type: Insert / Inbuilt Flue Kit (Retrofit)
Total Length: 4.0 metres
Application: Insert wood burners installed into masonry chimneys
Flue Diameter: 150 mm (inner flue)
Finish: Stainless steel with galvanised chimney plate
Includes:

• 3 x 1200mm x 150mm Stainless Steel Flue

• 1 x 600mm x 150mm Stainless Steel Flue

• 1 x 600mm x 250mm Galvanised Flue

• Outer flue components (where applicable)

• 1 x 300mm x 400mm Galvanised chimney plate with 250mm Spigot

• 1 x 150/250 Top Spacer Bracket

• 1 x 250/150 Stainless Steel Casing Cover

• 1 x 150mm Anti Down Draught Cowl

• Supports, brackets & hardware

Compatibility:
Most NZ inbuilt wood burners — Firenzo, Metro, Masport, Woodsman, Yunca, Pyro, etc.

Installation:
Must be installed by a certified wood burner installer for code compliance.
