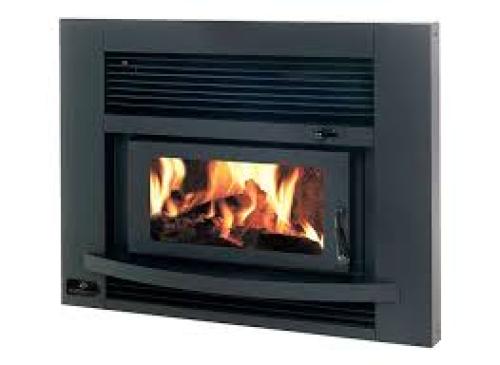

Woodsman Totara Insert Wood Burner

OVERVIEW

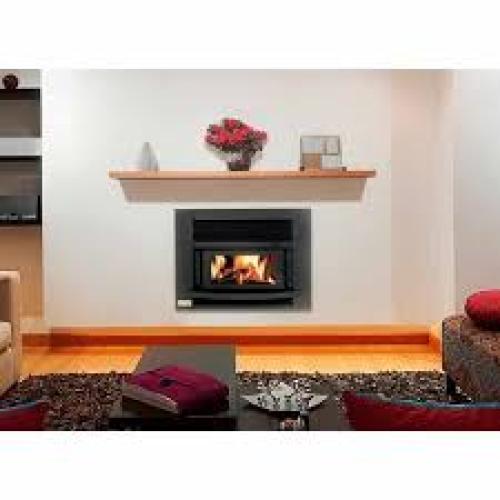

The Woodsman Totara Insert is a Low Emission wood burner designed to turn an existing brick or masonry open fireplace into a more effective enclosed wood fire. Its clean fascia and large viewing window make it particularly well suited to replacement and fireplace upgrade installations where homeowners want to retain the position and character of an existing fireplace.

The Totara has a 33 litre firebox, accommodates logs up to 450 mm long and delivers an average heat output of 7.3 kW on high and 4.7 kW on low. A stainless steel baffle is used for durability and straightforward servicing, and the fire operates without an electrical connection.

For an Auckland insert wood burner installation, Dr Flue can assess the existing fireplace and chimney, hearth requirements, clearances and the optimum new flue configuration. A zero-clearance installation option is also available for suitable timber-framed installations. When replacing an existing fire, Dr Flue installs a complete new flue system rather than reusing the old flue.

KEY FEATURES

• Low Emission / Clean Air approved

• Designed for existing masonry fireplace upgrades

• Zero-clearance option available for timber framing

• 7.3 kW average heat output on high

• 4.7 kW average heat output on low

• 33 litre firebox

• Maximum log length of 450 mm

• 6 mm steel firebox

• Stainless steel baffle

• Simple baffle removal for easier servicing

• No electrical connection required

• Fascia: 650 H × 840 W × 62 D mm

• Weight: 90 kg

• Handcrafted in New Zealand

TECHNICAL SPECIFICATIONS

Type: Insert Wood Burner
Fuel: Wood
Recommended Heating Area: Not Specified by Manufacturer
Estimated Peak Heat Output: 7.3 kW Average Heat Output on High
Cooktop: No
Fire Type: Clean Air / Low Emission Wood Burner – Auckland Installation Approved
Installation: Existing Masonry Fireplace / Zero-Clearance Timber Framing Option
Wetback: Not Available
Warranty: 15 Years Firebox / 2 Years Parts
Manufactured: New Zealand
