Wagener Sparky CA Clean Air Wood Burner

OVERVIEW

The Wagener Sparky CA Clean Air Wood Burner is a compact New Zealand-made freestanding fire designed for homes where space is limited but a practical wood burner is still required. The Sparky CA combines a narrow 370 mm body with a brick-lined firebox, integrated wood storage base and useful cooking surface. Wagener currently specifies 7–10 kW room heat.

For Auckland wood burner installations, the Sparky CA is the Clean Air approved version of the Sparky. It is certified as a Low Emission Burner (LEB) with ECAN authorisation 194116, tested at 0.55 g/kg emissions and 68% efficiency. Its compact dimensions make it particularly useful where available floor space is limited.

The Sparky CA is also worth considering for replacement wood burner installations in Auckland, particularly when replacing a smaller freestanding fire. During consultation, Dr Flue assesses the heating requirements, fire position, non-combustible hearth, clearances and roof penetration to determine the optimum complete new flue system for the installation.

KEY FEATURES

• Compact Clean Air approved wood burner

• 7–10 kW room heat

• Low Emission Burner (LEB)

• 0.55 g/kg tested emissions

• 68% tested efficiency

• Solid 5 mm NZ steel construction

• Brick-lined firebox

• Removable baffles for easier cleaning and servicing

• Practical stove-top cooking surface

• Optional cooktop rails

• Integrated log-base wood storage

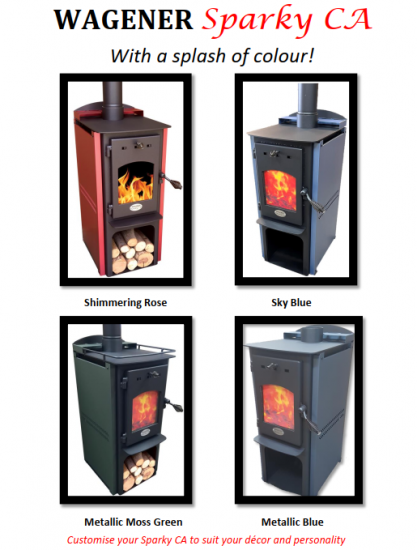

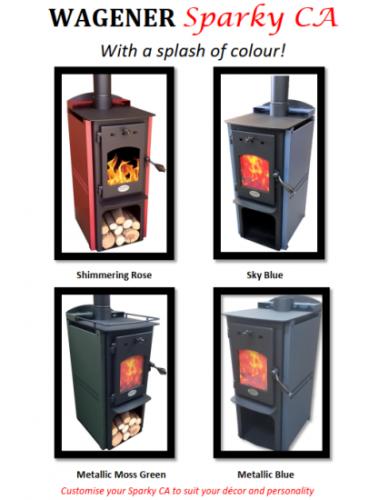

• Optional coloured panels

• Compact 370 mm wide body

• Purpose-designed 100 mm flue system

• New Zealand designed and handcrafted

• 5-year firebox warranty

TECHNICAL SPECIFICATIONS

Type: Compact Freestanding Wood Burner
Fuel: Wood
Recommended Heating Area: Not Specified by Manufacturer
Estimated Peak Heat Output: 10 kW
Cooktop: Yes – Stove-Top Cooking Surface
Fire Type: Clean Air / Low Emission Wood Burner – Auckland Installation Approved
Installation: Freestanding – Non-Combustible Hearth
Wetback: Not Available – Wetback Available on Sparky RU Only
Warranty: 5-Year Firebox Warranty
Manufactured: New Zealand
