Rinnai Linear Indoor-Outdoor Gas Fire

OVERVIEW

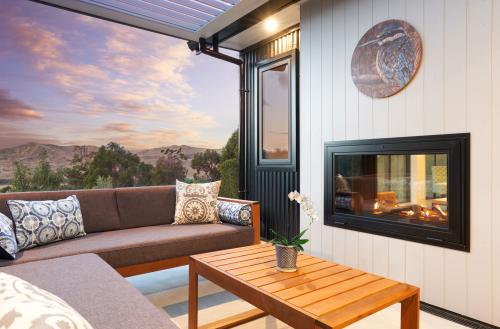

The Rinnai Linear Indoor-Outdoor Gas Fire is designed specifically for installation into an external wall, allowing the fireplace and flames to be enjoyed from both inside and outside the home. A dedicated double-glazed window assembly separates the two environments, while the indoor side provides convection heating and the outdoor side provides radiant warmth and fireplace ambience.

For Auckland gas fireplace installations, this is an excellent option for new homes and major renovations connecting a living room with a deck, patio or covered outdoor entertaining area. The Indoor-Outdoor collection is available in Linear 800 FlameTech, Linear 1000 and Linear 1500 configurations, with FlameTech also available on the 1000.

During a Dr Flue consultation we can assess the internal and external fireplace position, wall construction, window height, gas supply and optimum Rinnai power-flue configuration. This is a purpose-designed Indoor-Outdoor model and cannot be created by retrofitting the window system to an existing Linear double-sided fire.

KEY FEATURES

• Purpose-designed indoor-outdoor gas fireplace

• Installed into an external wall

• Enjoy the flame picture from inside and outside

• Indoor side provides convection heating

• Outdoor side provides radiant heat

• Dedicated double-glazed low-E window assembly

• Available in 800, 1000 and 1500 mm models

• FlameTech available in selected configurations

• Natural Gas or LPG models

• Rinnai power-flue system

• Ideal for new builds and substantial renovations

• Designed and made in New Zealand

TECHNICAL SPECIFICATIONS

Type: Indoor-Outdoor / External Wall Inbuilt Gas Fireplace
Fuel: Natural Gas or LPG
Available Sizes: Linear 800, Linear 1000 & Linear 1500
Heat Output: Model Dependent
Heating Style: Indoor Convection Heating / Outdoor Radiant Heat
Installation: Purpose-Built External Wall Installation
Window: Double-Glazed Low-E Glass Window System
Flue: Rinnai Power Flue System
Maximum Standard Flue Length: 8.5 m
Maximum Flue Bends: Three
Warranty: 5-Year Firebox Warranty
Manufactured: New Zealand

Important Information

These particular units are made to order with a 5 week lead time, from ordering.

Please Note: The advertised price is for the appliance only. Flue & Installation Components Sold Separately. Hearths (where required), flue systems, installation materials, and installation services are not included. Professional installation is recommended and must comply with all New Zealand building codes, gas regulations, and manufacturer requirements.
