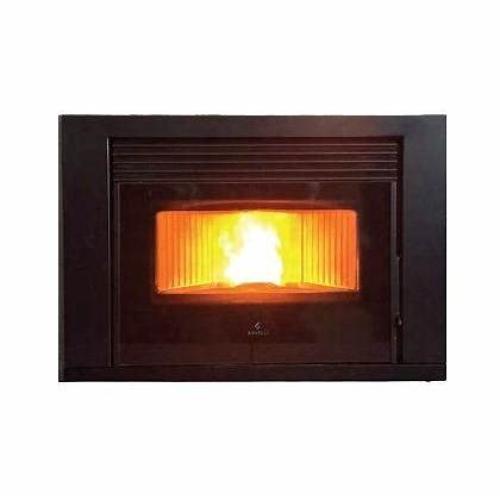

Ravelli Sofia - Retrofit Insert Pellet Fire

OVERVIEW

The Ravelli Sofia is a 9 kW insert pellet fire designed particularly for retrofit installations, making it an excellent option for converting an existing masonry fireplace to convenient automatic pellet heating. Its flush-mounted design retains the fireplace position while providing thermostatically controlled heating, automatic ignition and an efficiency rating of 84%.

For Auckland pellet fire installations, the Sofia is particularly useful where an existing masonry fireplace provides a suitable cavity. The fire slides forward for easy pellet refilling and includes remote, timer and thermostat controls, with optional Wi-Fi control available.

For replacement fireplace installations in Auckland, Dr Flue can assess the existing fireplace cavity, heating requirements, hearth, electrical supply and optimum pellet flue configuration. The Sofia can also be installed into a purpose-built compliant cavity where the required construction and clearances are provided.

KEY FEATURES

• Retrofit insert pellet fire

• Maximum heat output of 9 kW

• 84% efficiency

• Flush-mounted insert design

• Ideal for existing masonry fireplaces

• Slide-forward design for easy pellet refilling

• Automatic ignition

• Thermostat-controlled heating

• Programmable timer

• Remote control

• Optional Wi-Fi control

• ULEB / Clean Air approved for New Zealand

TECHNICAL SPECIFICATIONS

Type: Insert / Inbuilt Pellet Fire

Fuel: Wood Pellets

Recommended Heating Area: Not Specified by Manufacturer

Estimated Peak Heat Output: 9 kW

Cooktop: No

Fire Type: Ultra Low Emission Pellet Fire (ULEB) – Auckland Installation Approved

Installation: Existing Masonry Fireplace / Purpose-Built Cavity

Wetback: Not Available

Warranty: Manufacturer Warranty

Manufactured: Italy
